Initially established as the Hoffman Patent Brick and Tile Company on Albert St in 1870, the company soon grew after
purchasing 36 acres on Dawson St. With the addition of the new yard the Hoffman company was sitting on over 70 acres making it the largest of its kind in Victoria, revolutionising the brick industry as it was one of the first company’s to use and have the patented rights to Hoffman kilns which were developed by Friedreich Hoffman in Stettin, Prussia.

The company also began using Bradley-Craven design brick presses in 1887. During the 1890s the company moved into manufacturing other items such as drainage pipes and pottery due to the collapse of Melbourne’s building industry. In the 1930s it was realised that clay pit 1 at the Albert St site had reached its full potential, so the company focused on their 2nd clay pit at Dawson St. In 1960 the Hoffman Company was taken over by Clifton Holdings who closed the drainage division in 1962 later followed by the pottery division in 1969. In the 1990s the three kilns that were still in use were taken over by Nubrik, however by 2005 the site had been completely shut down and abandoned to make way for development. And as apartment blocks arise on the former Hoffman site, kiln 2,3 and the chimney from the now gone kiln 1, are all that remain at the location, and they are thought to be a few of the only ones that are left in the country.



Workings of the Hoffman Kiln.

A Hoffman kiln consists of a tunnel as pictured in my 1st photo.
Which runs all the way around the outer ground floor of the kiln
The tunnel in working days was divided into somewhere between 12 and 24 cavities
(Depending on the size of the kiln) with each archway being basically a doorway (explained later). The cavities were filled with loads of bricks and filled with coal from above (explanation in next paragraph),
Each cavity was then fired one at a time by a continuous fire that in some cases could take up to 8 weeks to complete a full circle of the kiln.



The way the kilns were fired.

Above each tunnel in the 1st floor of the kiln ran a series of openings in rows (known as ‘feed holes’)
The feed holes were covered by a thick steel ‘cap’. Each opening
went through the floor to the tunnel below.
The workers in the 1st floor of the kiln were known as ‘stokers’
Using a coal shovel the stokers poured a small evenly crushed amount of coal through the feed hole to the brick stackers or ‘setters’ below.

The setters set the unfired bricks in a way that the coal could be poured straight from the feed hole above into the middle of the bricks, basically using the bricks to be fired as their own fireplace or as a way to hold the coal that was to be lit.
Once the bricks were stacked in place, before the coal was added a temporary brick wall was built over the entrance to the archway to keep the heat in, this wall would remain in place until the fire had completed a near full circle. And the bricks that were fired some weeks ago had cooled and hardened.

The coal was then dropped in once the hot gases from the next chamber down had got to such a high temperature that the coal would automatically light once dropped through the feed hole, so in that way no one would have to risk entering the chamber to light each one. The excess gases and smoke exited through small holes in the wall into the chimney flue, then up and out the smokestack.



Workings of the continuous fire.

Say there is 12 chambers or cavities in a kiln.
Chamber 1,2 and 3 will be fired at once, at the same time chamber 4,5 and 6 will be being pre-heated by the hot gases from the first 3.
Chamber 7 and 8 will be heated by the hot air running through the tunnel from the kilns being fired, the 9th chamber will be being filled while the 10th will be empty and the 11th and 12th will be cooling.


Anyway some of my photographs of the location.



Kiln Tunnel.

Noticed this strange ceramic face on a beam, above an old hanging switch.

Not sure what this was used for or where it had been dragged out of.

Small generator, I'm unsure of its use.

The old gate keepers cottage.

Brickpresses.

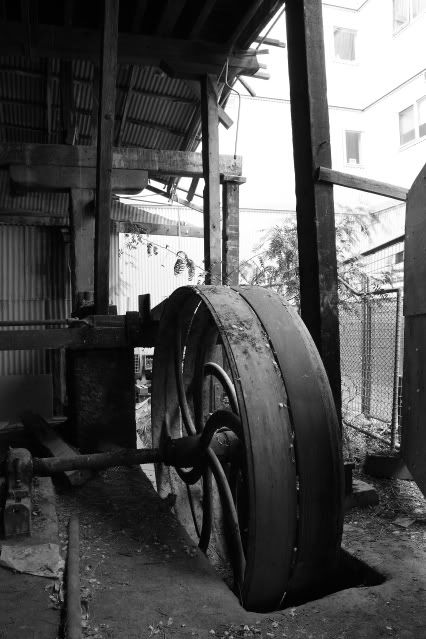

Steel wheel.

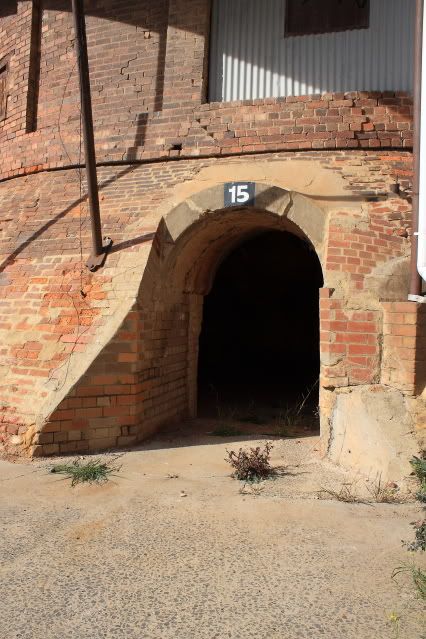

Kiln archway.

Brick display chart.

Upstairs of kiln.

Feed hole & steel cap.

The old brickpress shed & new apartments.



Thanks for looking.

I'll be posting up a similiar thread of Box Hill Brickworks soon.

-Matt.

_________________
Shot By Matt - Matt Lindsay Photography
KustomAuto - Discussing Australian Automotive Culture, Lifestyle, History & Heritage.


Top
 Profile

PostPosted: 19 Jun 2010, 18:22
Offline
Elite Member
Elite Member
User avatar

Joined: 11 Dec 2009, 10:01
Posts: 473
Location: Squaresville
I remember riding my motorcycle into one of the big sheds on site, about 15 years ago, exploring (it was derelict even back then) and freaking out about 10,000 bats, which in turn left me a little freaked out. There are some excellent industrial buildings there, well worthy of photographing. Thanks for the post, Matt. Great info and pics. =D>


Top
 Profile

PostPosted: 19 Jun 2010, 18:56
Offline
Elite Member
Elite Member

Joined: 02 Jan 2010, 13:57
Posts: 430
Thanks Matt, you've explained it all well. To have the site area producing bricks for that many years is a pretty good run indeed =D>


Top
 Profile

PostPosted: 20 Jun 2010, 13:51
Offline
Elite Member
Elite Member

Joined: 15 Dec 2009, 17:50
Posts: 715
Location: Carrum Downs.
No worries, yeah production lasted well over 100 years,
Yeah the majority of it was shut down along time ago, alot of that section is long gone now tho'.

_________________
Shot By Matt - Matt Lindsay Photography
KustomAuto - Discussing Australian Automotive Culture, Lifestyle, History & Heritage.


Top
 Profile

PostPosted: 20 Jun 2010, 19:32
Offline
Elite Member
Elite Member

Joined: 02 Nov 2008, 15:57
Posts: 450
Nice post, Matt. I remember having a look in there a few years back and poking around in the sheds but it's was a vague memory until I saw your photos so kudos to you.


Top
 Profile

PostPosted: 21 Jun 2010, 15:58
Offline
Elite Member
Elite Member

Joined: 15 Dec 2009, 17:50
Posts: 715
Location: Carrum Downs.
Thanks, wish i could of seen the place before the apartments went in,
not much left nowadays =) not sure what5 will eventually be left either because the chimneys are apparently
heritage listed but the same cant be said for the kilns themselves
